HDPE geomembrane extrusion line

Description

HDPE geomembrane extrusion line

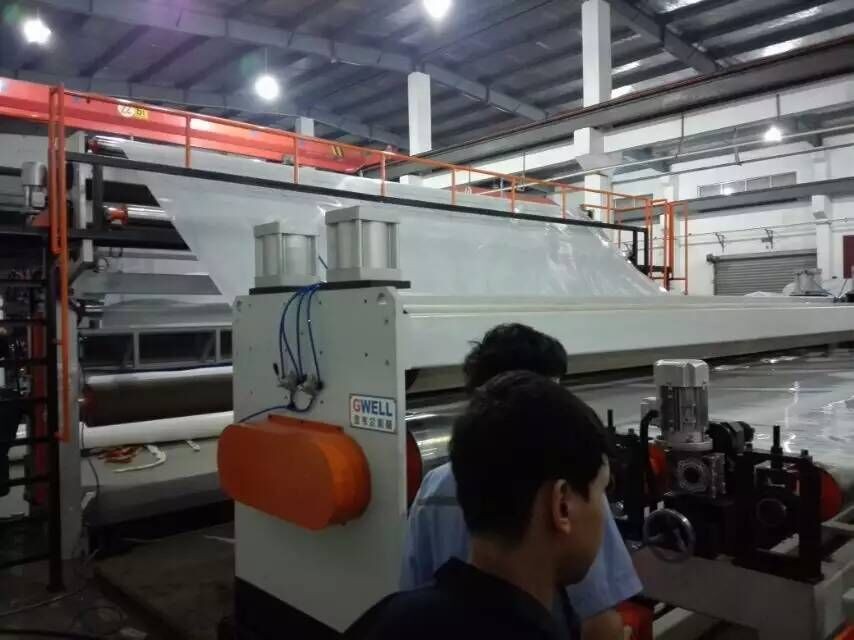

Gwell developed new type of 8 meters PE waterproof membrane extrusion line had been tested sucessfully .



By new type of design, the roller calender is horizontal, without changing rolls can easily make different design of membrane.

Application



For waterproof usage in industrial and civil buildings including planted roof ,plane and pitched roof .

Underground waterproof: reservoir ,dam,pool. Waterproof usage in tunnel,grain depot,air-raid shelters,landfill,artificial lake etc.



Technical data



Mode	GWS130	GWS150	GWS200
Material	PE	PE	PE
Width	4000mm	7000mm	8000mm
Thickness	0.5-3mm	0.8-3mm	0.8-3mm
Max capacity	500kg/h	1000kg/h	1500kg/h
Designed line speed	8m/min	5m/min	8m/min
