Description

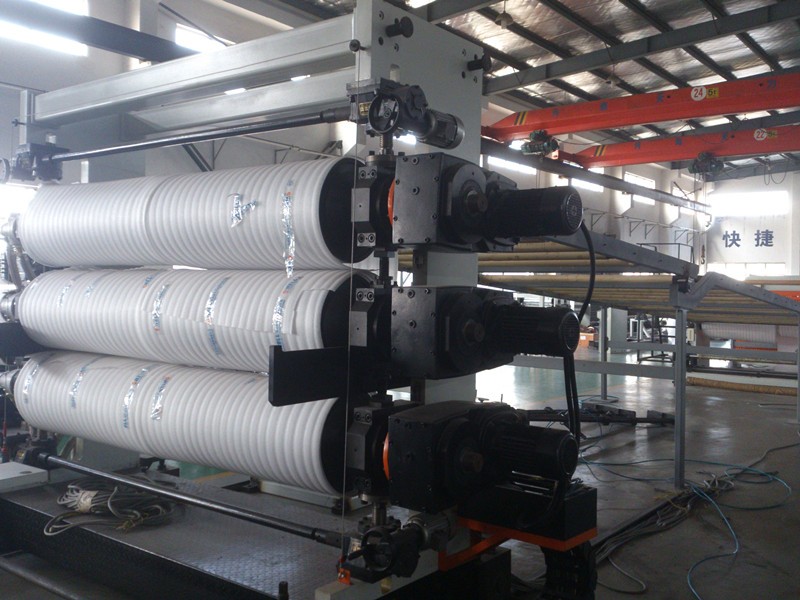

PMMA, GPPS sheet extrusion line
Note:The specification are subject to change under customer request
1.ABS/PMMA Co-extrusion Sanitaryware Plate Line:
Co-extrude PMMA-ABS and compound them together. Not only maintain the gloss surface of acrylic board, but also given Consideration to ABS board shock-resistant advantage. The products widely apply in the field of bath products, such as the bathtub, the shower cabinet, the vapor room, etc.
2.It can be divided into ABS plate, non-fluorin ABS plate, germproof ABS plate, HIPS plate, high luster composite HIPS plate, 141b resist HIPS plate. It has the good features of flexibility in low temperature, high impact, anti-erosion The product is used as gallbladder in the refrigerator, door gallbladder, the drawer, water contained plate, etc.
3.It can be divided into veins plate, sub-veins plate, anti-flammable veins plate. The plate has the features of good thermoplastic, anti-flammable and impact resistance. Widely used in top of the car and bus, instrument board , backrest, car door, windows frame, shell of the motorcycle; all kinds of baggage,etc.
GWELL developed new type of high capacity ABS/HIPS sheet line for many famous company, like VESTEL, HAIER, LITTLE SWAN. The new type of machine capacity is 1.5 tons per hour.
| Model | GW-130/60-2000 | GW-120/60/45-1800 | GW-130/70/60-2700 |
| Suitable Material | ABS/HIPS | ABS/HIPS | ABS/HIPS |
| Extruder model | GW130/38
GW60/35 |
GW120/38
GW45/35 |
GW130/38
GW70/35 GW60/35 |
| Co-extrusion layer | A/B;A/B/A | A/B/C | A/B/C/B/A |
| Products width | 1800mm | 1700mm | 2100-2500mm |
| Products thickness | 1-6mm | 1-6mm | 2-8mm |
| Max. capacity | 1200kg/h | 550kg/h | 700kg/h |
